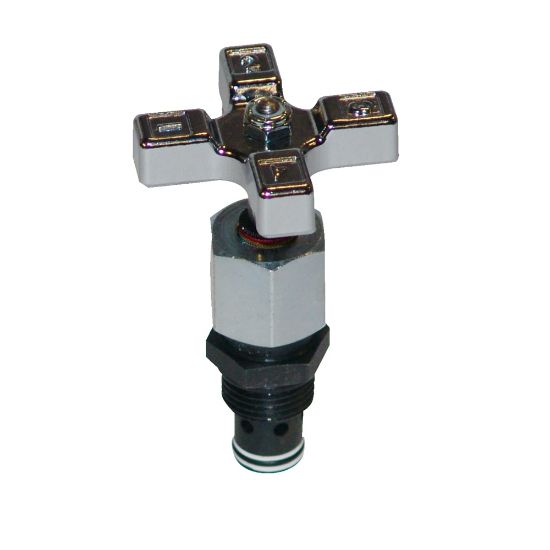

MVI600S - Colorflow Precision Needle Valve – MVI Series

Parker’s Colorflow MVI series is a cartridge-type metering valve that meters flow in both directions.

Availability:	Backordered Estimated Lead Time: 89 days
Partner Available:	19 in stock

SKU MVI600S

$673.60/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	+250° F
Connection Size	3/8	Needle option	Standard
Minimum Operating Temperature	-40	Maximum Flow Rate	8
Flow Rate	n/a	Connection Type	NPT
Operation Type	N/A	Maximum Operating Pressure	5000
Body Material	Steel	Actuation Type	Manual
Configuration	Cartridge Type	Seal Material	Nitrile
For Fluid Type	Hydraulic Oil	Function	Needle Vlave
Function	Needle Valve	Configuration	Cartridge Type
Maximum Operating Temperature	+121 °C	Connection Size	3/8"
Body Material	Steel	Connection Type	NPT
Minimum Operating Temperature	-40° °C	Actuation Type	Manual
Flow Rate	8	Maximum Flow Rate	8 Gal/min
For Fluid Type	Oil	Maximum Operating Pressure	5000 psi
Product Style	Metering Valve	Seal Material	Nitrile
