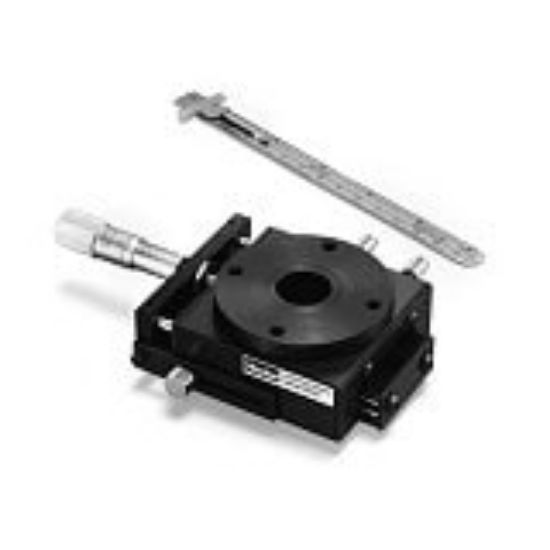

Picture of Combined Linear and Rotary Manual Stages - 4575 Series - 4575

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Combined Linear and Rotary Manual Stages - 4575 Series - 4575

The 4575-series of tangent arm driven manual stages combine both linear and rotary motion in one unit. Offering 0.5 inch of linear travel with 360 degrees of angular motion, they are suitable for payloads of up to 5 lbs
Availability:
Backordered
SKU 4575
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEATypeEnglish Model / with Aperture
DivisionElectronic Motion and Controls DivisionBearing TypeCross Roller
Number of Axes1Mounting OptionEnglish Model
Drive Train TypeImperial MicrometerWidth66.5 mm
Product TypeLinear+Rotary StageLoad Capacity15 lb
Product Series4575 SeriesMaximum Travel Angle360 ° + 0.5 inch
