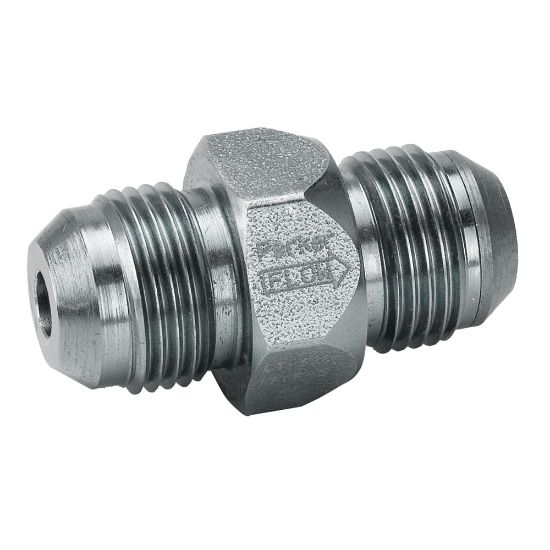

Picture of Compact, Hydraulic In Line Check Valves - DT Series - DT-1250-MFMF-5

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Compact, Hydraulic In Line Check Valves - DT Series - DT-1250-MFMF-5

Parker's in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.
Availability:
Backordered
SKU DT-1250-MFMF-5
$199.17
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAInlet Port Size (inch)1 5/8 - 12 UN
Cracking Pressure (psi)5Outlet Port Size (inch)1 5/8 - 12 UN
Maximum Working Pressure (psi)2500Inlet Port Connection TypeMale JIC 37 degree
Outlet Port Connection TypeMale JIC 37 degreeMinimum Operating Temperature-40 °F
Body MaterialSteelDivisionQuick Coupling Division
Maximum Operating Temperature250 °FConfigurationn/a
Mounting TypeThreadedActuation TypeMechanical
Maximum Flow Raten/aMaximum Operating Pressure2500 psi
Flow Directionn/aDimensional Weight0.22945143884892086 lb
Seat TypeMetal SealSeal MaterialMetal
Connection TypeMale Flare JIC to Male Flare JICBody Size1 1/4 inch
Connection Size1- 11/16 - 12 UN
