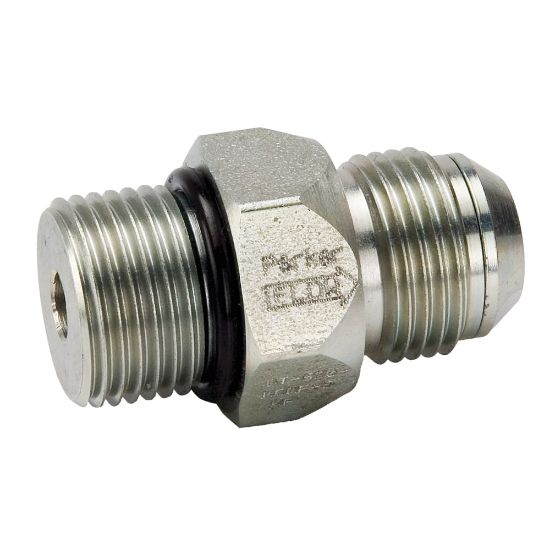

DT-1250-MOMF-5 - Compact, Hydraulic In Line Check Valves - DT Series

Parker's in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	9 in stock

SKU DT-1250-MOMF-5

$189.34/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Inlet Port Size (inch)	1 5/8 - 12 UN
Cracking Pressure (psi)	5	Outlet Port Size (inch)	1 5/8 - 12 UN
Maximum Working Pressure (psi)	2500	Inlet Port Connection Type	Male SAE O-ring Straight Thread
Outlet Port Connection Type	Male JIC 37 degree	Minimum Operating Temperature	-40 °F
Body Material	Steel	Maximum Operating Temperature	250 °F
Configuration	n/a	Mounting Type	Threaded
Actuation Type	Mechanical	Maximum Flow Rate	n/a
Maximum Operating Pressure	2500 psi	Flow Direction	n/a
Dimensional Weight	0.22945143884892086 lb	Seat Type	Metal Seal
Connection Type	Male ORB to Male Flare JIC	Seal Material	Metal & Elastomeric
Body Size	1 1/4 inch	Connection Size	1- 11/16 - 12 UN
