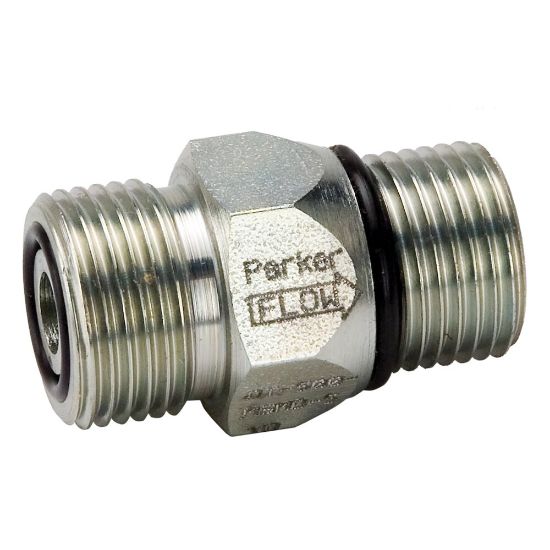

DT-1250-MSMO-5 - Compact, Hydraulic In Line Check Valves - DT Series

Parker's in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	Backordered

SKU DT-1250-MSMO-5

$160.90/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Cracking Pressure (psi)	5
Outlet Port Size (inch)	1 5/8 - 12 UN	Inlet Port Connection Type	Male Seal-Lok
Inlet Port Size (inch)	1 11/16 - 12 UN	Outlet Port Connection Type	Male SAE O-ring Straight Thread
Maximum Working Pressure (psi)	4000	Minimum Operating Temperature	-40 °F
Body Material	Steel	Maximum Operating Temperature	250 °F
Configuration	n/a	Mounting Type	Threaded
Actuation Type	Mechanical	Maximum Operating Pressure	4000 psi
Maximum Flow Rate	n/a	Flow Direction	n/a
Dimensional Weight	0.12582258992805753 lb	Seat Type	Metal Seal
Seal Material	Metal & Elastomeric	Body Size	1 1/4 inch
Connection Size	1- 11/16 - 12 UN	Connection Type	Male Seal-Lok ORFS to Male ORB
