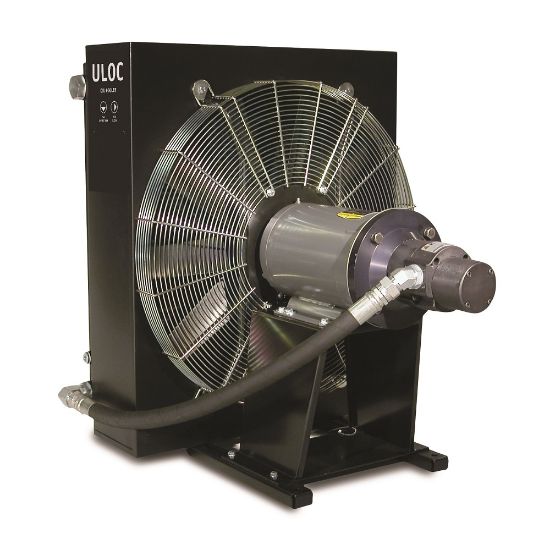

Picture of Complete Air Oil Cooler System with AC Motor - ULOC Series - (Americas) - ULOC-007D-Q-A-SW

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Complete Air Oil Cooler System with AC Motor - ULOC Series - (Americas) - ULOC-007D-Q-A-SW

ULOC Series oil coolers offer a compact and durable design that will provide efficient performance and long life. They provide up to 60hp of offline cooling and are suitable for most applications and environments.
Availability:
Backordered
SKU ULOC-007D-Q-A-SW
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAPump Size6.3 gpm
Bypass Optionsno bypassSizeSize 007D
Motor TypeThree Phase, 575V, 60 HzSpecifications MetUL, CSA and CE Available on Motor
For Fluid TypeMineral OilInput Voltage575
Length14.4Maximum Operating Pressure300
Weight66DivisionAccumulator and Cooler Division
Width26.1Motor TypeThree Phase
Noise Level71Motor Power Output Rating1
Maximum Cooling Capacity8.5Frequency60
Flow Rate6.3Materials of ConstructionAluminum (Cooler Core)
Maximum Fluid Temperature250Height15.6
Port Size1 inch (#16)Connection Thread Size1-5/16"-12
