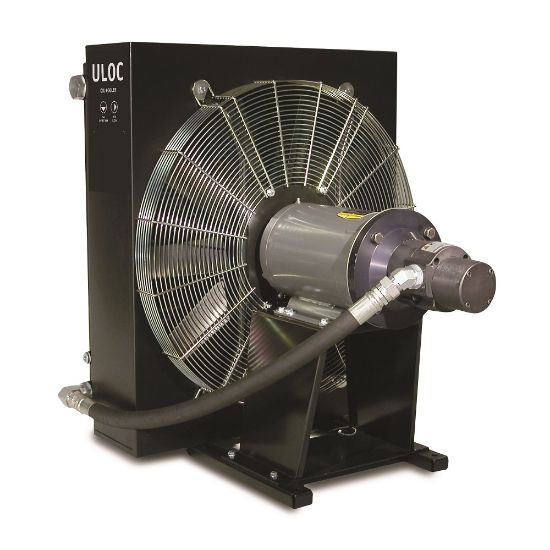

ULOC-007E-M-C-SB - Complete Air Oil Cooler System with AC Motor - ULOC Series - (Americas)

ULOC Series oil coolers offer a compact and durable design that will provide efficient performance and long life. They provide up to 60hp of offline cooling and are suitable for most applications and environments.

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU ULOC-007E-M-C-SB

$7,473.90/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Bypass Options	65 psi External Hose Bypass
Size	Size 007E	Pump Size	19.0 gpm
Motor Type	Three Phase, 190/380V 50 Hz, 208-230/460V 60 Hz	Connection Thread Size	1-5/16"-12 inch
Input Voltage	190/380	Port Size	1
Motor Power Output Rating	2 HP	Height	396.2 mm
Flow Rate	71.9 L/min	Motor Type	Three Phase
Weight	37.2 kg	Specifications Met	UL, CSA and CE Available on Motor
Maximum Operating Pressure	300 psi	Maximum Fluid Temperature	121 °C
Length	14.4 inch	Maximum Cooling Capacity	8.6 kW
Frequency	50/60 Hz	For Fluid Type	Water Glycol
Materials of Construction	Electrostatically Powder-Coated Surface Treatment	Noise Level	72 dBA
