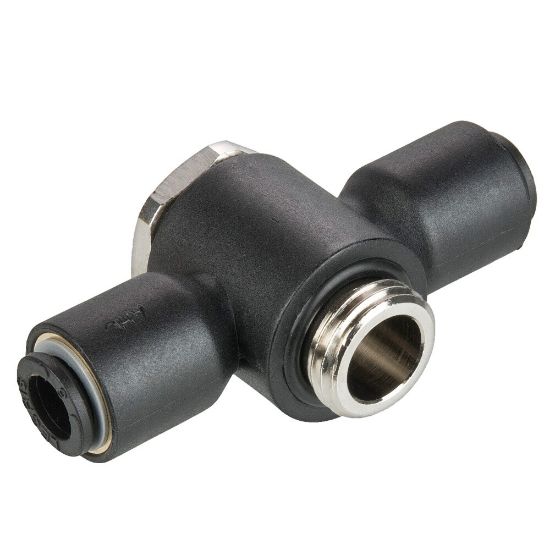

Composite Push-to-Connect Fittings - PLP Composite - 32PLPDJ-4M-M5

Name: Composite Push-to-Connect Fittings - PLP Composite - 32PLPDJ-4M-M5
SKU: 32PLPDJ-4M-M5

Parker Prestolok composite push-to-connect fittings provide a simple way of connecting tubes to a fitting. Prestolok composite push in fittings reduce assembly time by eliminating the use of a sleeve and tightening of a nut.

Availability:

Backordered

SKU 32PLPDJ-4M-M5

$15.53

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	4 mm
Connection 1 Type	Push-to-Connect	Connection 2 Size	4 mm
Configuration	Tube to Pipe	Connection 2 Type	Metric
Connection 3 Size	M5x0.8	Body Material	Glass-Reinforced Nylon
Product Style	Double Banjo	Connection 1 Tube Outside Diameter	4 mm (O.D.)
Connection 3 Type	Male M5 Threads	Division	Fluid System Connectors Division
Connection Type	n/a	Body Material	n/a
Application	Pneumatics	Specifications Met	ISO 14743
Tube Material	Nylon Semi-Rigid	Gripping Ring Material	n/a

Product resources

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)

Compliance, Certifications & Safety

Literature and Reference Materials

Brass, Composite and Thermoplastic Fittings and Valves - CAT. 3501E (PDF)
