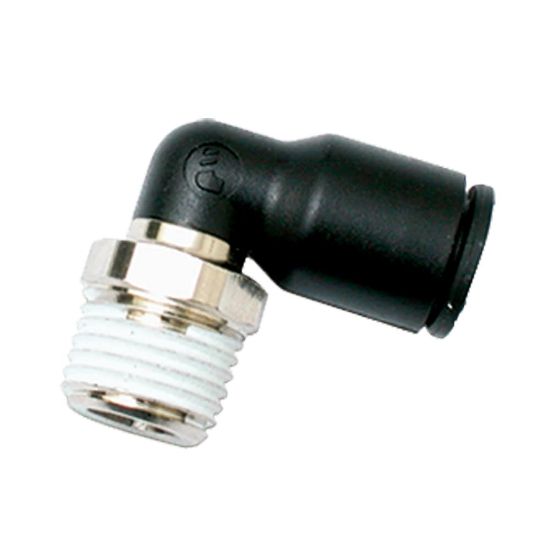

W369PLP-8-6 - Composite Push-to-Connect Fittings - PLP Composite

Name: W369PLP-8-6 - Composite Push-to-Connect Fittings - PLP Composite
SKU: W369PLP-8-6
Price: 11.43 USD
Availability: InStock

Parker Prestolok composite push-to-connect fittings provide a simple way of connecting tubes to a fitting. Prestolok composite push in fittings reduce assembly time by eliminating the use of a sleeve and tightening of a nut.

Availability:

24 in stock

Kansas City, KS	16
WICHITA, KS	2
COLUMBIA, MO	2
Kansas City, KS	2
Peoria, IL	2

Partner Available:

217 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU W369PLP-8-6

$11.43/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Tube Outside Diameter	1/2" (O.D.)
Connection 1 Type	Push-to-Connect	Connection 1 Size	1/2"
Connection 2 Thread Size	3/8"	Body Material	Glass-Reinforced Nylon
Configuration	Tube to Pipe	Shape	Elbow 90°
Connection 2 Size	3/8"	Product Style	Tube to Pipe
Connection 2 Type	NPT	Body Material	n/a
Maximum Operating Temperature	175 °F	Specifications Met	N/A
Tube Material	n/a	Silicone Free	n/a
Seal Material	Nitrile	Minimum Operating Temperature	-20 °C
Maximum Operating Pressure	20 bar	Fitting Material	Glass Reinforced Nylon 6.6
Gripping Ring Material	Stainless Steel	Connection Type	NPTF, BSPT, UNF, Metric
