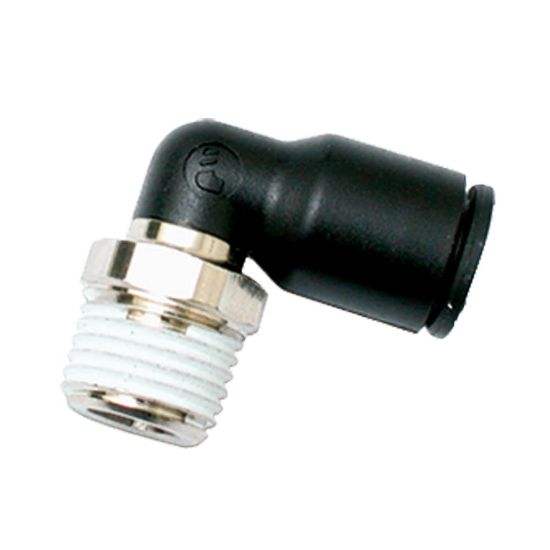

Picture of Composite Push-to-Connect Fittings - PLP Composite - W369PLP-8M-2

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Composite Push-to-Connect Fittings - PLP Composite - W369PLP-8M-2

Parker Prestolok composite push-to-connect fittings provide a simple way of connecting tubes to a fitting. Prestolok composite push in fittings reduce assembly time by eliminating the use of a sleeve and tightening of a nut.
Availability:
299 in stock
Olivette, MO291
Springfield, MO8
SKU W369PLP-8M-2
$9.52
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection 2 Size1/8"
Connection 2 TypeNPTConnection 1 TypePush-to-Connect
Connection 1 Tube Outside Diameter8 mm (O.D.)Connection 2 Thread Size1/8"
ConfigurationTube to PipeBody MaterialGlass-Reinforced Nylon
ShapeElbow 90°Product StyleTube to Pipe
Connection 1 Size8 mmDivisionFluid System Connectors Division
Fitting MaterialN/AApplicationPneumatics, Packaging, Textile, Vacuum, Semi-Conductors, Robotics
Minimum Operating Temperature-20 °CSilicone FreeYes
Body MaterialGlass Reinforced Nylon 6.6Connection Typen/a
Specifications MetISO 14743, DI: 97/23/EC, DI: 2002/95/EC, DI: 1907/2006Seal MaterialNitrile
Maximum Operating Temperature80 °CTube MaterialNylon Semi-Rigid, Polyurethane 95 Durometer, Nylon, Fluoropolymer
Gripping Ring Materialn/aMaximum Operating Pressure290 psi
