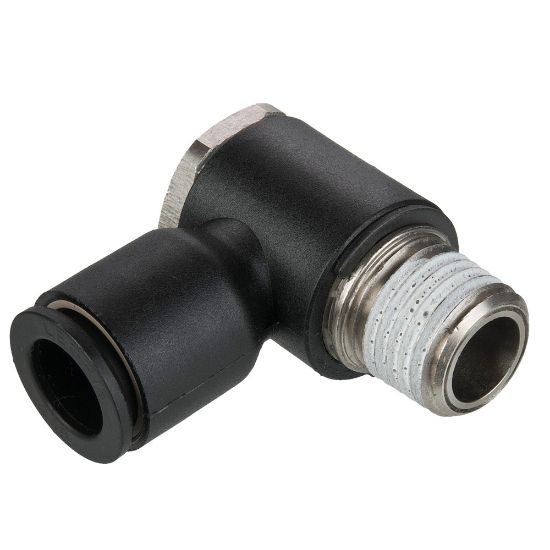

Picture of Composite Push-to-Connect Fittings - PLP Composite - W369PLPBJ-4-2

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Composite Push-to-Connect Fittings - PLP Composite - W369PLPBJ-4-2

Parker Prestolok composite push-to-connect fittings provide a simple way of connecting tubes to a fitting. Prestolok composite push in fittings reduce assembly time by eliminating the use of a sleeve and tightening of a nut.
Availability:
Backordered
SKU W369PLPBJ-4-2
$19.71
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection 2 Size1/8"
Connection 2 TypeNPTConnection 1 TypePush-to-Connect
Product StyleSingle BanjoConnection 1 Tube Outside Diameter1/4" (O.D.)
Body MaterialGlass-Reinforced NylonConnection 2 Thread Size1/8"
ConfigurationTube to PipeConnection 1 Size1/4"
Gripping Ring MaterialStainless SteelConnection TypeNPTF, BSPT, UNF, Metric
Fitting MaterialGlass Reinforced Nylon 6.6DivisionFluid System Connectors Division
Minimum Operating Temperature-4ApplicationPneumatics, Packaging, Textile, Vacuum, Semi-Conductors, Robotics
Body Materialn/aTube Materialn/a
Maximum Operating Pressure290Specifications MetN/A
Silicone Freen/aSeal MaterialNitrile
Maximum Operating Temperature175
