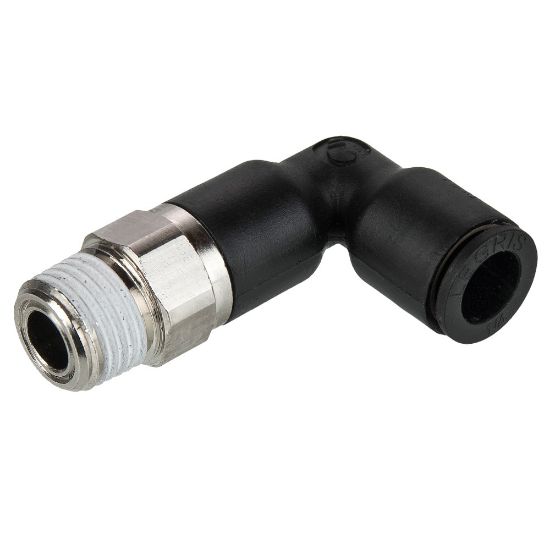

Picture of Composite Push-to-Connect Fittings - PLP Composite - W369PLPX-6-2

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Composite Push-to-Connect Fittings - PLP Composite - W369PLPX-6-2

Parker Prestolok composite push-to-connect fittings provide a simple way of connecting tubes to a fitting. Prestolok composite push in fittings reduce assembly time by eliminating the use of a sleeve and tightening of a nut.
Availability:
Backordered
SKU W369PLPX-6-2
$24.43
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection 1 TypePush-to-Connect
ShapeElbow 90° - ExtendedProduct StyleTube to Pipe
Body MaterialGlass-Reinforced NylonConfigurationTube to Pipe
Connection 2 Thread Size1/8"Connection 2 TypeNPT
Connection 1 Size3/8"Connection 1 Tube Outside Diameter3/8" (O.D.)
Connection 2 Size1/8"Specifications MetN/A
Body Materialn/aMaximum Operating Pressure290
Tube Materialn/aSilicone Freen/a
Maximum Operating Temperature175Seal MaterialNitrile
Fitting MaterialGlass Reinforced Nylon 6.6ApplicationPneumatics, Packaging, Textile, Vacuum, Semi-Conductors, Robotics
DivisionFluid System Connectors DivisionGripping Ring MaterialStainless Steel
Connection TypeNPTF, BSPT, UNF, MetricMinimum Operating Temperature-4
Product resources

Compliance, Certifications & Safety, Literature and Reference Materials

Compliance, Certifications & Safety

Literature and Reference Materials
