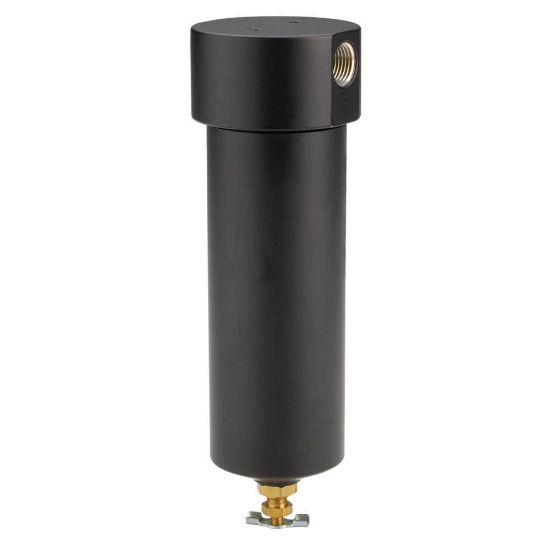

MN1S-3PUN - Compressed Air and Gas - Up to 800 PSIG - M-Series

Name: MN1S-3PUN - Compressed Air and Gas - Up to 800 PSIG - M-Series
SKU: MN1S-3PUN
Price: 300.00 USD
Availability: LimitedAvailability

Parker’s Finite filters make it possible to improve process efficiency and provide optimal process protection.

Availability:

1 Limited Stock

Wichita, KS

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU MN1S-3PUN

$300.00/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Length	Standard
Micron Rating (µm)	3	Pre-Installed Optional Accessories	None
Filter Rating (%)	N/A	Element Seal Material	Urethane
Thread Type	NPT	Maximum Flow Rate (cfm)	178 at 800 PSIG
Port Connection (inch)	1/4	Filter Type	Particulate
Maximum Flow Rate	302 m3/hour at 55 barg	Compatible Element	3PU10-025
Height	200 mm	Weight	0.83 kg
Maximum Operating Temperature	79 °C	Element Removal Clearance	3 inch
