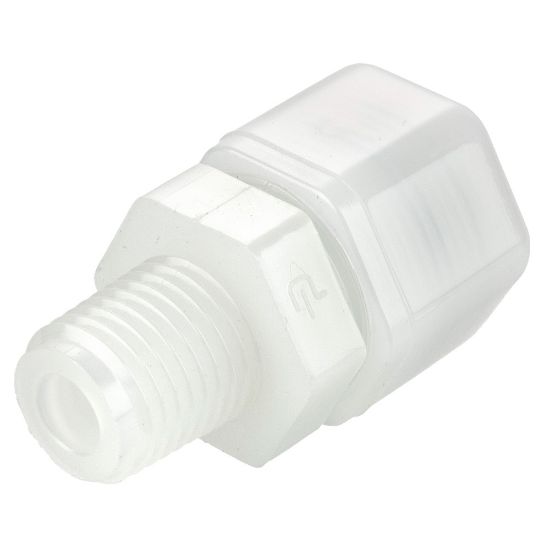

N10MC12 - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

Availability:	Backordered Estimated Lead Time: 52 days
Partner Available:	1 Limited Stock

SKU N10MC12

$4.43/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Tube Outside Diameter	5/8" (O.D.)
Product Style	Connector	Connection 2 Thread Size	3/4"
Connection 1 Type	Compression	Configuration	Tube to Pipe
Connection 2 Type	NPTF	Body Material	Nylon
Minimum Operating Temperature	-40 °C	Maximum Operating Pressure	50 psi
For Fluid Type	Water	Maximum Operating Temperature	200 °F
Body Material	Nylon	Specifications Met	NSF 51
Tube Material	Glass	Seal Material	Nitrile (O-Ring)
Gripping Ring Material	Stainless Steel AISI 302
