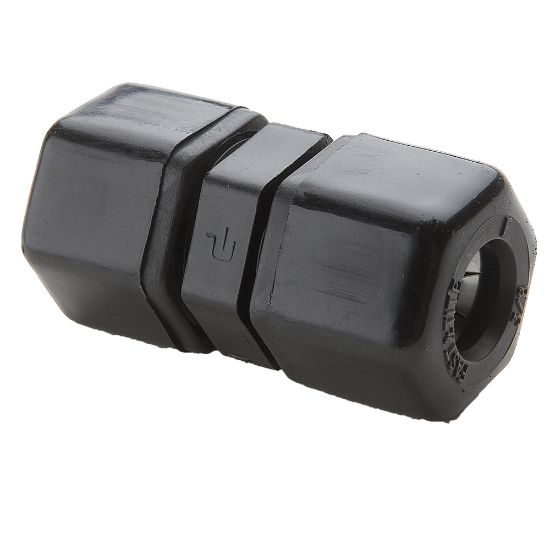

P10UC10 - Compression Style Plastic Fittings, Fast-Tite

Name: P10UC10 - Compression Style Plastic Fittings, Fast-Tite
SKU: P10UC10
Price: 4.58 USD
Availability: InStock

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

Availability:

50 in stock

Kansas City, KS

Partner Available:

94 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU P10UC10

$4.58/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Type	Compression
Configuration	Tube to Tube	Body Material	Black Polypropylene
Shape	Union	Connection 2 Type	Compression
Connection 1 Tube Outside Diameter	5/8" (O.D.)	Connection 2 Tube Outside Diameter	5/8" (O.D.)
Maximum Operating Temperature	100 °C	O-Ring Material	Nitrile
Specifications Met	FDA, NSF-51	Dimensional Weight	0.5504 lb
Maximum Operating Pressure	3.5 bar	Tube Material	Thermoplastic, Glass, Soft Metal
Body Material	Polypropylene	Gripping Ring Material	302 Stainless Steel
Minimum Operating Temperature	0 °F	Media	Water, Air, Other Compatible Fluids
