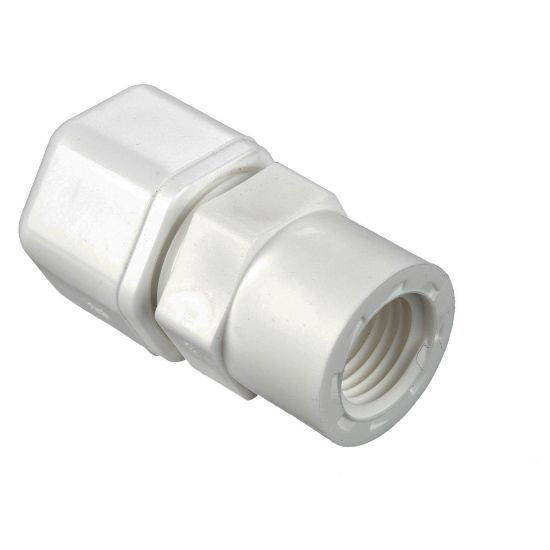

Picture of Compression Style Plastic Fittings, Fast-Tite - W8FC6

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Compression Style Plastic Fittings, Fast-Tite - W8FC6

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.
Availability:
Backordered
SKU W8FC6
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection 1 TypeCompression
Connection 2 TypeNPTFConnection 1 Tube Outside Diameter1/2" (O.D.)
ConfigurationTube to Female PipeBody MaterialWhite Polypropylene
Connection 2 Thread Size3/8"Product StyleConnector
Tube MaterialSoft MetalMaximum Operating Temperature212 °F
DivisionFluid System Connectors DivisionSeal MaterialNitrile (O-Ring)
For Fluid TypeAirApplicationFiltration
Gripping Ring MaterialStainless Steel AISI 302Specifications MetNSF 51
Maximum Operating Pressure150 psiMinimum Operating Temperature-18 °C
Body MaterialPolypropylene
