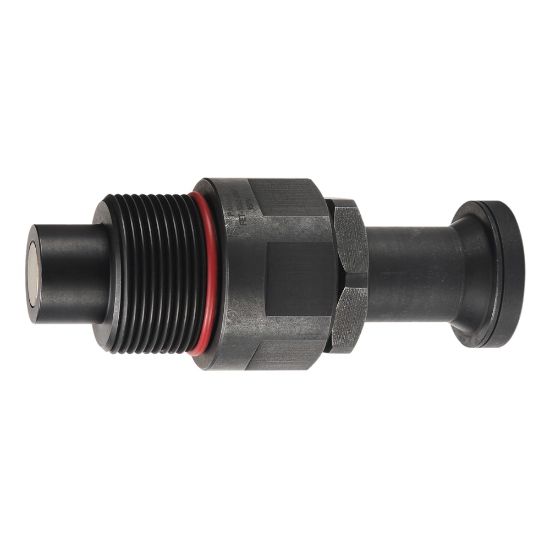

Connect under Pressure, Heavy Duty, Hydraulic Flat Face Quick Couplings - FET Series - FET-1002-20SF

Name: Connect under Pressure, Heavy Duty, Hydraulic Flat Face Quick Couplings - FET Series - FET-1002-20SF
SKU: FET-1002-20SF

Parker's FNC coated, steel high-pressure, non-spill, screw to connect hydraulic couplers can connect under pressure for use in heavy duty, high impulse hydraulic applications where fluid lines require fast and easy connection and disconnection.

Availability:

Backordered

SKU FET-1002-20SF

$364.26

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Code 62 Flange head
Body Material	Steel	Coupling Half	Male Nipple
Maximum Operating Pressure	6000	Body Size (inch)	1
Connection Thread Size (inch)	na	Application	High Impulse Hydraulics
Hex Size 1	65 mm	Seal Material	Polyurethane/Nitrile
Hex Size 2	2-3/16 inch	Dimensional Weight	0.23297841726618707 lb
Division	Quick Coupling Division	Plating Type	Black FNC Coating
Maximum Operating Temperature	250 °F	Product Type	Thread to Connect
Minimum Operating Temperature	-40 °F	Valve Type	Non-spill
Body Material	Steel
