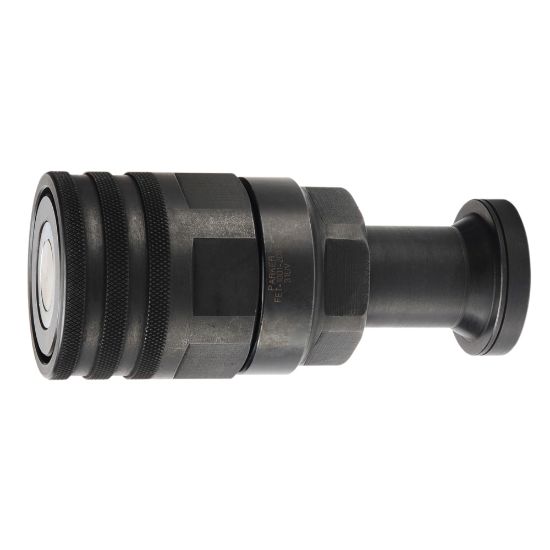

FET-751-16SFP - Connect under Pressure, Heavy Duty, Hydraulic Flat Face Quick Couplings - FET Series

Parker's FNC coated, steel high-pressure, non-spill, screw to connect hydraulic couplers can connect under pressure for use in heavy duty, high impulse hydraulic applications where fluid lines require fast and easy connection and disconnection.

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU FET-751-16SFP

$315.26/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	3/4
Connection Thread Size (inch)	na	Coupling Half	Female Coupler
Maximum Operating Pressure	6000	Body Material	Steel
Connection Type	Code 62 Flange pad	Plating Type	Black FNC Coating
Maximum Operating Temperature	250 °F	Hex Size 2	2-3/4 inch
Body Material	Steel	Valve Type	Non-spill
Minimum Operating Temperature	-40 °F	Dimensional Weight	0.18081151079136693 lb
Hex Size 1	55 mm	Seal Material	Polyurethane/Nitrile

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
