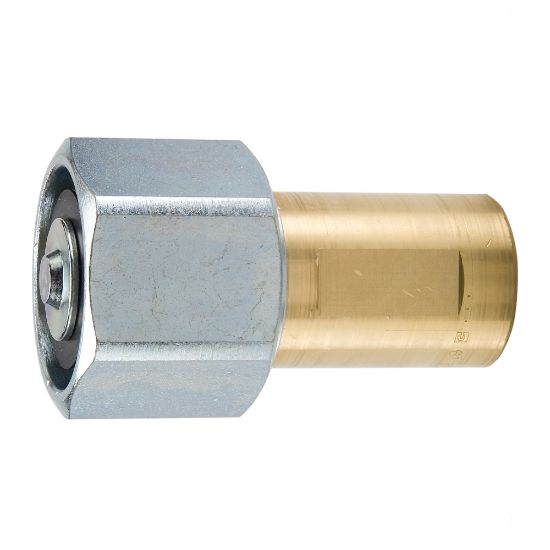

Picture of Connect Under Pressure, High Flow Quick Couplings - 6100 Series - 6135-08

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Connect Under Pressure, High Flow Quick Couplings - 6100 Series - 6135-08

Parker's low spill thread to connect couplers and nipples, wing nut or hex nut style, are ideal for use in applications where a high flow flush valve and connect under pressure is needed.
Availability:
Backordered
SKU 6135-08
$135.73
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEACoupling HalfFemale Coupler
Connection Thread Size (inch)1/2 - 14Body Size3/4 Inch
Sleeve TypeHex nutMinimum Operating Temperature-40 °F
Body MaterialBrassDimensional Weight0.31160071942446044 lb
DivisionQuick Coupling DivisionMaximum Operating Pressure3000 psi
Seal MaterialNitrileMaximum Operating Temperature250 °F
ApplicationHydraulicsProduct TypeThread to Connect
Connection TypeFemale NPTFFlow Rate12 Gal/min
Valve TypeFlat FaceHex Size1.16 inch
Hex Size 21.75 inchPlating TypeZinc with Clear Trivalent Chromate on Steel Sleeve
