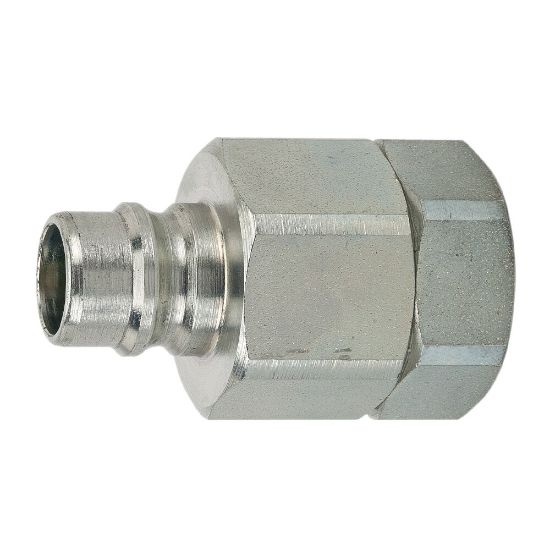

Picture of Connect Under Pressure, Multi-Purpose Quick Couplings - PH Series - VPHN8-8F

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Connect Under Pressure, Multi-Purpose Quick Couplings - PH Series - VPHN8-8F

Parker's general purpose connect under pressure quick couplers and nipples are versatile for use across a spectrum of applications where fluid lines require fast and easy connection and disconnection while under residual pressure
Availability:
Backordered
SKU VPHN8-8F
$53.51
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEABody Size (inch)1/2
Coupling HalfMale NippleConnection Thread Size (inch)1/2 - 14
Connection TypeFemale NPTFMinimum Operating Temperature-40 °F
Body MaterialSteelDivisionQuick Coupling Division
Seal MaterialNitrileMaximum Operating Temperature250 °F
Plating TypeZinc with clear trivalent chromateProduct TypeManual Connect
Valve TypePoppetMaximum Operating Pressure4000 psi
ApplicationGeneral PurposeHex Size1.19 inch
Dimensional Weight0.27302158273381294 lb
