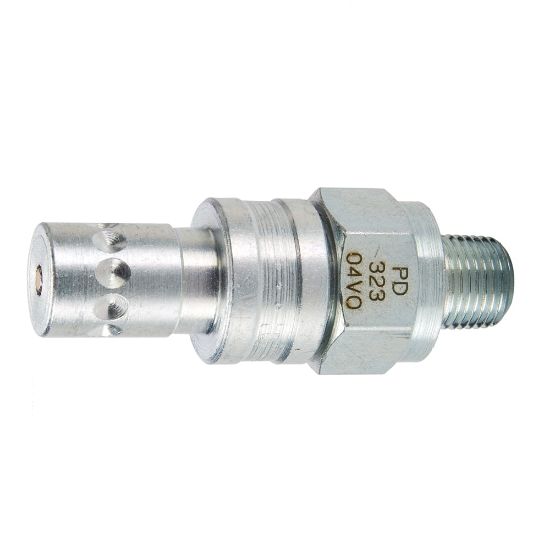

PDP323 - Connect Under Pressure, Test Port, Diagnostic Quick Couplings - PDP Series

Name: PDP323 - Connect Under Pressure, Test Port, Diagnostic Quick Couplings - PDP Series
SKU: PDP323
Price: 77.15 USD
Availability: LimitedAvailability

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:

1 Limited Stock

TOPEKA, KS

Partner Available:

12 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU PDP323

$77.15/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Male Nipple
Connection Type	Male NPTF	Tube Size (inch)	na
Connection Thread Size (inch)	1/8 - 27	Valve Type	Ball
Body Size	1/8 inch	Plating Type	Zinc with clear trivalent chromate
Hex Size	0.79 inch	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Maximum Operating Pressure	6000 psi
Body Material	Steel	Minimum Operating Temperature	-40 °F

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
