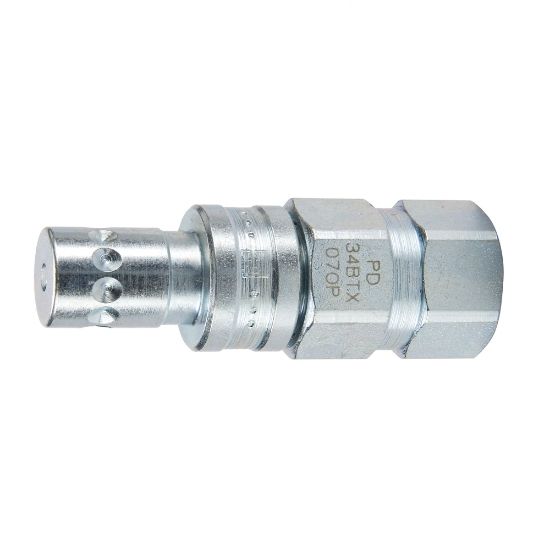

PDP34BTX - Connect Under Pressure, Test Port, Diagnostic Quick Couplings - PDP Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	2 Limited Stock

SKU PDP34BTX

$80.45/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Triple-Lok
Connection Thread Size (inch)	na	Tube Size (inch)	1/4
Coupling Half	Male Nipple	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Plating Type	Zinc with clear trivalent chromate	Maximum Operating Pressure	6000 psi
Body Material	Steel	Hex Size	0.69 inch
Valve Type	Ball	Body Size	1/8 inch

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
