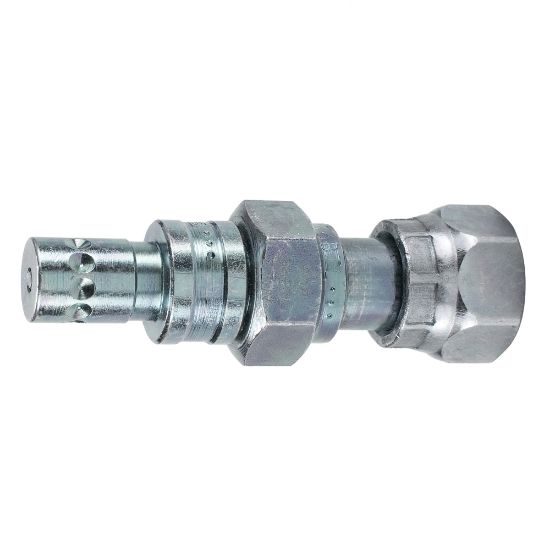

PDP36BTL - Connect Under Pressure, Test Port, Diagnostic Quick Couplings - PDP Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU PDP36BTL

$94.81/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Tube Size (inch)	3/8
Coupling Half	Male Nipple	Connection Type	Seal-Lok
Connection Thread Size (inch)	na	Minimum Operating Temperature	-40 °F
Maximum Operating Pressure	6000 psi	Body Material	Steel
Hex Size	0.81 inch	Plating Type	Zinc with clear trivalent chromate
Maximum Operating Temperature	250 °F	Body Size	1/8 inch
Valve Type	Ball	Seal Material	Nitrile

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
