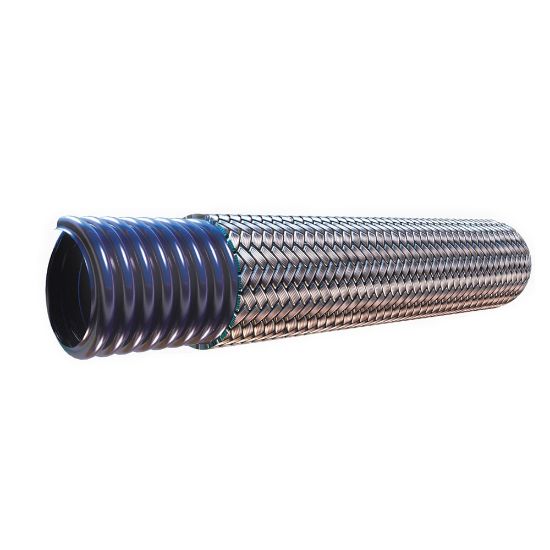

Picture of Convoluted PTFE Hose with 304 Stainless Steel Braid - SCW/SCB - 08-SCB

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Convoluted PTFE Hose with 304 Stainless Steel Braid - SCW/SCB - 08-SCB

Parker SCW and SCB hoses are seamless, low profile, environmentally safe, self-draining and able to withstand extreme flexing. They are suitable for fluid handling, chemical transfer, paint and semiconductor applications.
Availability:
Backordered
SKU 08-SCB
$32.37
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose StyleStatic Dissipative
Hose I.D. (inch)1/2DivisionParflex Division
Maximum Operating Pressure104 barMediaIndustrial Fluids
Cover Materialn/aCompatible FittingPAGE Series
Specifications MetUSP Class VI (compliant core tube)Vacuum Pressure Rating28 Inch-Hg
Hose Inner Tube MaterialPolytetrafluoroethylene (PTFE) Static DissipativeHose Reinforcement MaterialBraid of 304 Stainless Steel
Maximum Operating Temperature500 °FMinimum Operating Temperature-73 °C
Design Factor4:1ApplicationSemiconductor
Minimum Bend Radius1-1/2 inchSize-8
Weight0.16 lb/ftInside Diameter13 mm
Outside Diameter0.760 inch
