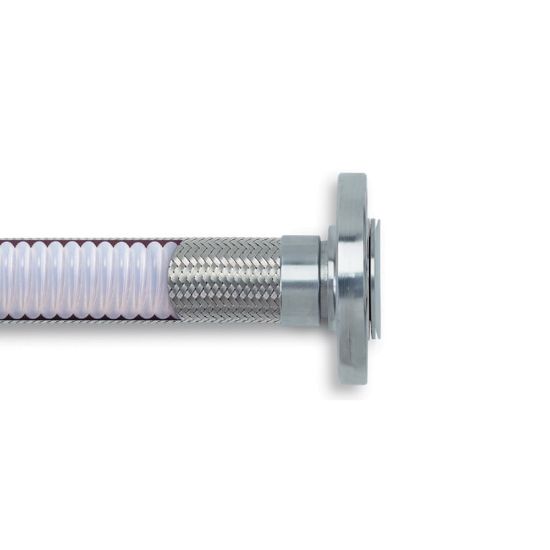

Convoluted PTFE Hose with 304 Stainless Steel Braid - SCW/SCB - 12-SCW

Name: Convoluted PTFE Hose with 304 Stainless Steel Braid - SCW/SCB - 12-SCW
SKU: 12-SCW

Parker SCW and SCB hoses are seamless, low profile, environmentally safe, self-draining and able to withstand extreme flexing. They are suitable for fluid handling, chemical transfer, paint and semiconductor applications.

Availability:

Backordered

SKU 12-SCW

$38.97

Products specifications

Attribute name	Attribute value
UOM	FT	Hose Style	Natural
Hose I.D. (inch)	3/4	Division	Parflex Division
Application	Fluid Handling	Cover Material	n/a
Compatible Fitting	PAGE Series	Specifications Met	FDA (Core Tube)
Vacuum Pressure Rating	28 Inch-Hg	Hose Inner Tube Material	Polytetrafluoroethylene (PTFE)
Hose Reinforcement Material	Braid of 304 Stainless Steel	Maximum Operating Temperature	260 °C
Minimum Operating Temperature	-100 °F	Design Factor	4:1
Media	Chemicals	Minimum Bend Radius	2 inch
Size	-12	Inside Diameter	19 mm
Weight	0.27 lb/ft	Outside Diameter	1.030 inch
Maximum Operating Pressure	8.3 MPa
