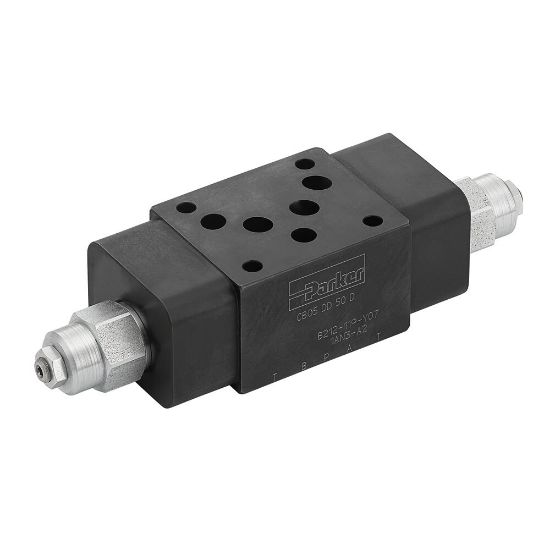

Picture of Counterbalance Sandwich Valve - CB Series - CB03AA30NA

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Counterbalance Sandwich Valve - CB Series - CB03AA30NA

Parker’s CB series counterbalance valve controls the actuator movement with overrunning loads.
Availability:
Backordered
SKU CB03AA30NA
$677.88
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAMaximum Operating Pressure3000 PSI
SizeNFPA D03; CETOP 3; NG6Mounting TypeSubplate
Maximum Flow Rate15 GPMMaximum Operating Temperature176 °F
Minimum Operating Temperature-4 °FBody MaterialSteel
Maximum Operating Pressure207 barSeal MaterialNitrile
DivisionHydraulic Valve Systems DivisionMaximum Flow Rate57 L/min
MediaOilActuation TypeHydraulic Pressure
Weight0.3 kgPort ConnectionA Port
SizeCETOP 3Mounting TypeSubplate
Product StyleCounterbalance ValvePilot Pressure Ratio3:01
Filter Efficiency RatingISO 4406 18/16/13 (meet NAS 1638:7)Allowable Circuit Leakage5 DPM
