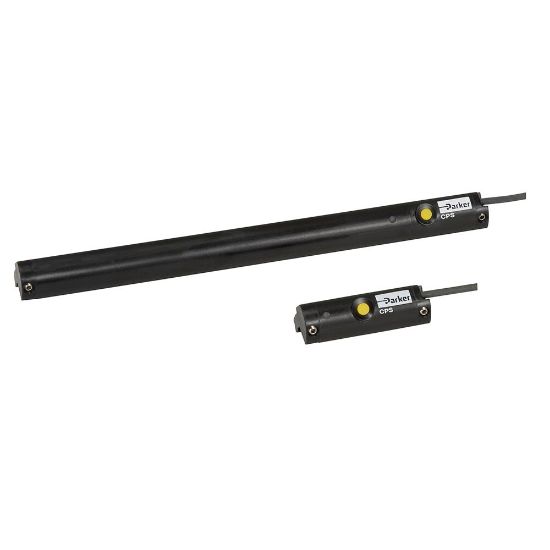

Picture of CPS (Continuous Position Sensor) Actuator Accessories - P8S Series - P8SAGACHF

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

CPS (Continuous Position Sensor) Actuator Accessories - P8S Series - P8SAGACHF

P8S Continuous Position Sensors enable contactless monitoring of cylinder strokes from 32mm to 256mm. Continuous supplied data via analog output or IO-Link is ideally suited for quality and process control functions.
Availability:
Backordered
SKU P8SAGACHF
$554.42
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAOutput TypeAnalog
Sensing Range (mm)0-192DivisionPneumatic Division
TechnologyPneumaticsBore DiameterN/A
Specifications MetIO-LinkProduct SeriesPneumatic Cylinder Accessories
Product TypeSensor ComponentLED ColorYellow (Analog)
Linearity0.3 mmCable TypePUR (Polyurethane) Cable length 0.3m
Resolution0.03 % Full Stroke. Full Scale Range (max >=0.05 mm)InstallationDrop-in fixed by allen key 2.5 mm
Cylinder TypeProfile with T-slotInput Voltage15 to 30 VDC
Repeatability0.06 % Full Scale Range (>= 0.1 mm)Sensing Range32 to 256 mm depending on Type.
Signal OutputAnalogOutput Voltage0 to 10 V
Overall Length0 to 192 mmScrew MaterialStainless Steel
Connection TypeM12 IO-Link (knurled nuts)Housing MaterialPlastic Polyamid PA12
Vibration Resistance30 g 11 ms / 10 … 55 Hz, 1 mmOutput Current Rating4 to 20 mA
Ingress Protection RatingIP67 (according to EN 60529)Maximum Ambient Temperature70 °C
Minimum Ambient Temperature-20 °C
