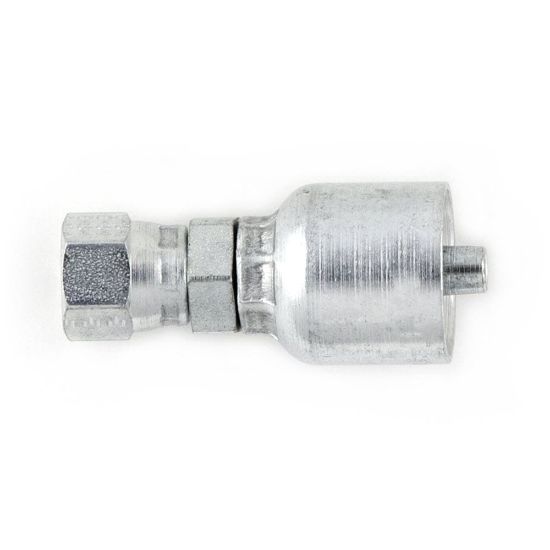

10643-32-32 - Crimp Style Hydraulic Hose Fitting - 43 Series Fittings

Name: 10643-32-32 - Crimp Style Hydraulic Hose Fitting - 43 Series Fittings
SKU: 10643-32-32
Price: 146.47 USD
Availability: InStock

Parker’s best-selling 43 Series crimp style hydraulic fittings are a complete range of cost-effective, permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.

Availability:

43 in stock

Peoria, IL	15
TOPEKA, KS	6
Wichita, KS	5
Springfield, MO	5
COLUMBIA, MO	4
Olivette, MO	3
Joplin, MO	2
Decatur, IL	2
Kansas City, KS	1

Partner Available:

466 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 10643-32-32

$146.47/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Straight
Materials of Construction	Steel	Port Connection	2"
Product Style	Female JIC 37° - Swivel	Hose I.D. (size)	-32
Hex Type	Inch	Shape	Straight
Disclaimer	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	Flange Size	n/a
Banjo Port Diameter	n/a	Materials of Construction	Steel
Port Size	2 inch	Connection Size	2-1/2"-12 inch Thread
Hose Inside Diameter	-32 (Size)	Product Style	Female JIC 37° - Swivel
Nut Hex Size	73.025 mm	Back-Up Hex Size	63.50 mm

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide--B.1 (PDF)
