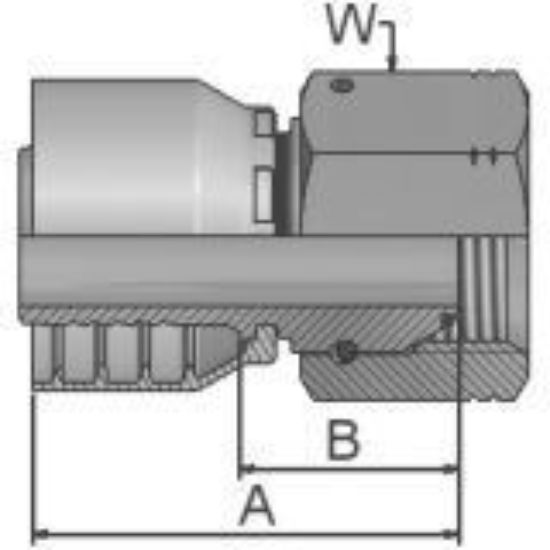

1EA43-8-8 - Crimp Style Hydraulic Hose Fitting - 43 Series Fittings

Parker’s best-selling 43 Series crimp style hydraulic fittings are a complete range of cost-effective, permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.

Availability:	Backordered Estimated Lead Time: 159 days
Partner Available:	99 in stock

SKU 1EA43-8-8

$31.16/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Straight
Materials of Construction	Steel	Port Connection	1/2"
Hose I.D. (size)	-8	Hex Type	Metric
Product Style	Female BSP Parallel Pipe - Swivel (60° Cone with O-Ring)	Shape	Straight
Disclaimer	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	Flange Size	n/a
Nut Hex Size	n/a	Back-Up Hex Size	n/a
Banjo Port Diameter	n/a	Materials of Construction	Steel
Port Size	1/2 inch	Connection Size	n/a
Hose Inside Diameter	1/2 inch	Product Style	Female BSP Parallel Pipe - Swivel - DKOR (60° Cone)
Nominal Inside Diameter	DN 12

Product resources

Compliance, Certifications & Safety

Safety Guide--B.1 (PDF)

Literature and Reference Materials
