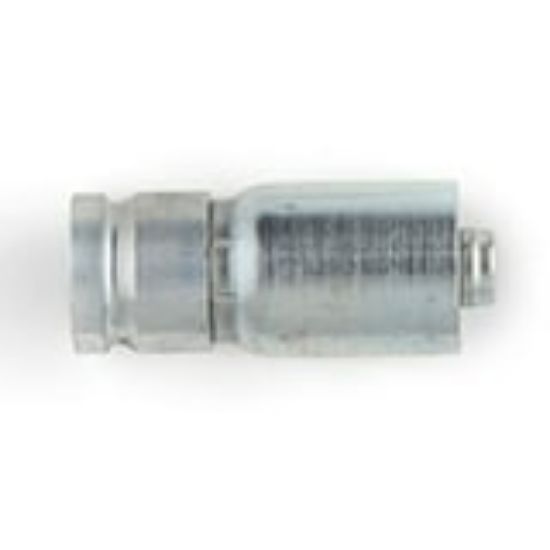

1X577-20-16 - Crimp Style Hydraulic Hose Fitting – 77 Series Fittings

Parker’s 77 Series high-pressure hydraulic hose fittings deliver high performance, quick assembly and the design flexibility of more than 500 configurations.

Availability:	Backordered Estimated Lead Time: 30 days
Partner Available:	Backordered

SKU 1X577-20-16

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Straight
Materials of Construction	Steel	Hose I.D. (inch)	1"
Port Connection	1-1/4"	Material	Steel
Style	Full Flange - Code 61/62	Product Style	Full Flange - Code 61/62
Port Size	1-1/4	Shape	Straight
Nut Hex Size	n/a	Back-Up Hex Size	n/a
Banjo Port Diameter	n/a	Materials of Construction	Steel
Connection Size	n/a	Hose Inside Diameter	1
Flange Size	1-1/4	Product Style	Full Flange - Code 61/62
