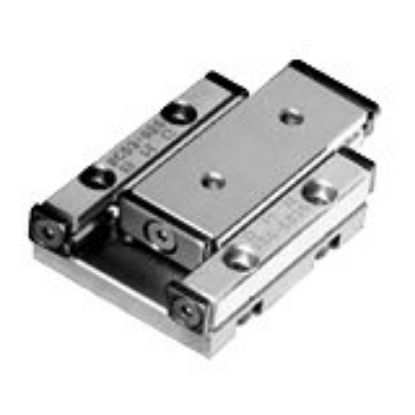

Cross Roller Bearing Guided, Miniature Manual Linear Slides - SW038 Series

Parker’s SW Series of The crossed roller slide bearing system is composed of two rows of rollers. Each roller is alternately crossed at 90° with the next and captured in “V” grooves, located on the base and top. Since rollers provide a larger (line) contact surface than ball bearings, a crossed roller slide has higher load carrying capability than a ball slide of comparable size.

The SW Series is our smallest crossed roller slide. The SW038 offers excellent precision, smooth motion, and a long life in a package that is only 38 mm wide.

Markets:
• Life Science
• Photonics
• Optics

Features/Benefits:
• Travels up to 7.8”
• Payloads up to 789 lbs
• Lightweight aluminum construction provides corrosion resistance
• Crossed roller design provides longer bearing life, higher load capacity, smoother rolling motion, increased mechanical stiffness uses proprietary 2V grinding process.
• Raceway banking pad provides a flat and straight banking point
• Patented preload screws

Applications:
• Metrology
• Focusing
• Laser alignment
