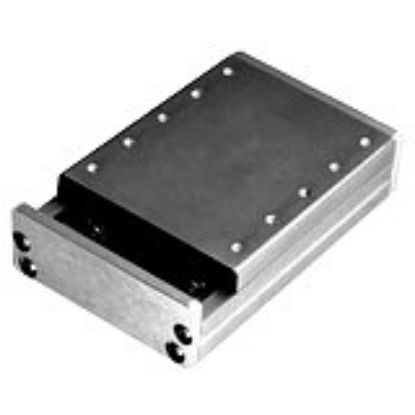

Parker’s SP Series of the crossed roller slide bearing system is composed of two rows of rollers. Each roller is alternately crossed at 90° with the next and captured in “V” grooves, located on the base and top. Since rollers provide a larger (line) contact surface than ball bearings, a crossed roller slide has higher load carrying capability than a ball slide of comparable size.

The SP Series features end plates for positioning, making them ideal for factory automation applications. The SP offers excellent precision, smooth motion, and a long life in a compact footprint.

Markets:
• Life Science
• Photonics
• Factory Automation
• Optics

Features/Benefits:
• Travels up to 11.8”
• Payloads up to 2738 lbs
• Lightweight aluminum construction provides corrosion resistance
• Crossed roller design provides longer bearing life, higher load capacity, smoother rolling motion, increased mechanical stiffness uses proprietary 2V grinding process.
• Raceway banking pad provides a flat and straight banking point
• Patented preload screws

Applications:
• Metrology
• Focusing
• Laser alignment
• General Automation
