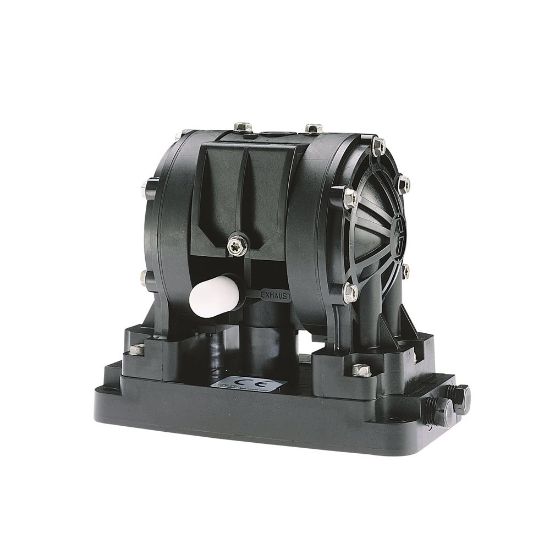

D11026

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D11026

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Flow Rate	5 GPM
Weight	2.5 lb	Series	205
Material	Acetal	Air Exhaust Port Thread Gender	Female
Connection Type	Threaded	Type	Pneumatic
Air Inlet Size	1/4 Inch	Air Inlet Thread Gender	Female
Fluid Inlet Thread Gender	Female	Air Exhaust Port Thread Type	NPT;BSP
Maximum Solid Size	0.06 Inch	Manifold Configuration	End Port
Air Exhaust Port Size	1/4 Inch	Diaphragm Compatible Material	Santoprene
Maximum Air Consumption	9 SCFM	Fluid Outlet Thread Type	NPT;BSPT
Diaphragm Material	Santoprene	Fluid Outlet Thread Gender	Female
Air Inlet Thread Type	NPT;BSP	Fluid Outlet Size	1/4 Inch
Center Section Material	Polypropylene	Model	Husky
Fluid Inlet Thread Type	NPT;BSPT	Maximum Cycle Rate	320 CPM
Maximum Operating Temperature	180 deg F	Fluid Inlet Size	1/4 Inch
