D111VW002C2NYW

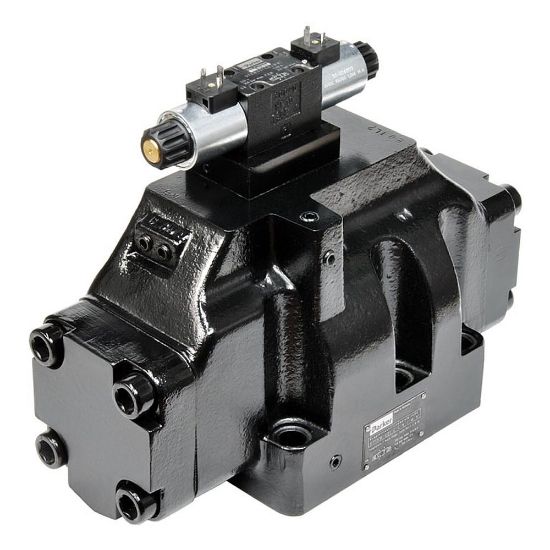

Parker D111VW002C2NYW | Directional Control Valve | Material Cast Iron | Connection Type Connector As Per EN 175301-803 | For Fluid Type Hydraulic Oil

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU D111VW002C2NYW

$7,315.20/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Flow Rate	2000 lpm
Operation Type	Pilot	Function	3-Way
Pilot Inlet / Drain Locations	External	For Fluid Type	Hydraulic Oil
Port Connection	NG32 / CETOP 10	Minimum Operating Temperature	-25 °C
Bore Size	50 mm	Maximum Operating Temperature	60 °C
Marking	Standard	Seal Material	NBR
Actuation Type	Solenoid	Spool Code	'002
Solenoid Option	Standard Solenoid Without Options	Input Voltage	110/120 VAC, 50/60 Hz
Spool Position	3 Positions, Spring Offset In Position 0, Operated In Position A Or B	Product Series	Directional Control Valve
Mounting Option	Subplate
