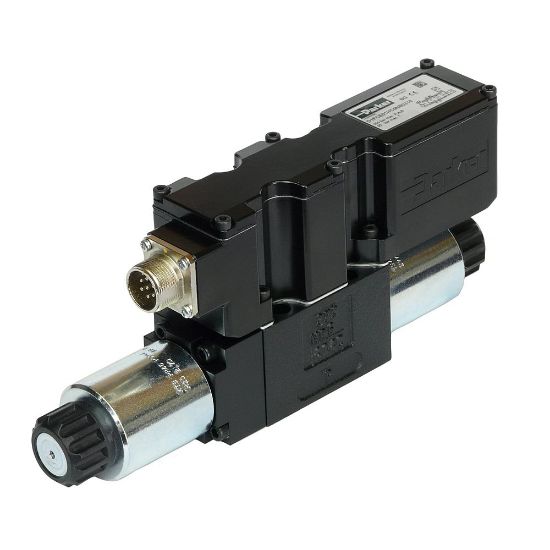

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

D1FCE01HC9NB73

Availability:	Backordered
Partner Available:	Backordered

SKU D1FCE01HC9NB73

$4,633.00/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Hysteresis	< 0.1 %
Operation Type	Direct	Function	3-Way, 0 to 10 V = P-A
Port Connection	NG06 / CETOP 03	Variation of Opening Point	set to 10 % Command Signal
Filter Efficiency Rating	ISO 4406; 18/16/13	Flow Rate	20 lpm
For Fluid Type	Hydraulic Oil	Signal Output	+10...0...-10 V
Leak Rate	<50 (Overlap Spool)	Spool Design	Spool/Body
Response Time	20 ms	Minimum Fluid Temperature	-25 °C
Minimum Ambient Temperature	-20 °C	Minimum Kinematic Viscosity	20 cSt
Defined Spool Position At Power Down	Center position	Mounting Option	Din 24340 / ISO 4401 / Cetop Rp121 / NFPA
Spool Type	Overlap	Maximum Ambient Temperature	60 °C
Maximum Kinematic Viscosity	400 cSt	Spool Code	E01, Equal Metering, 4-way, 3 Position, All Ports Open
Maximum Fluid Temperature	60 °C	Pressure Differential	5 Bar
Actuation Type	Proportional	IP Rating	IP65
Mounting Position	Unrestricted	Electronics Type	Onboard
Seal Material	NBR	Power Supply Voltage	18...30, Electric Shut-off at < 17, Ripple < 5 % eff., Surge Free V
Product Series	Proportional DC Valve	Marking	Standard
Signal Input	0 to ±10 V
