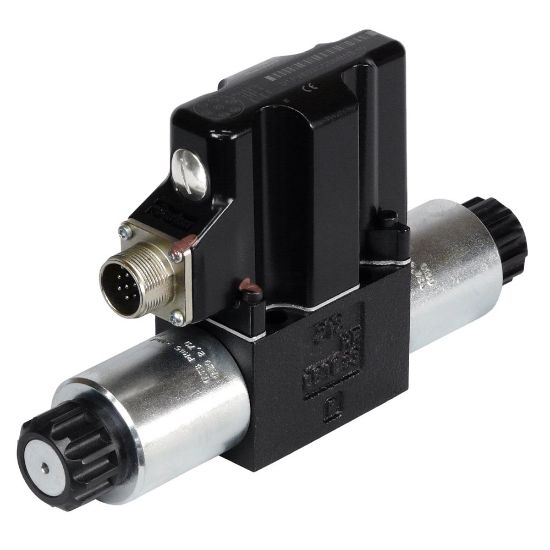

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

D1FVE02DC0NS03

Availability:	Backordered Estimated Lead Time: 80 days
Partner Available:	Backordered

SKU D1FVE02DC0NS03

$3,499.44/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

The robust proportional pressure reducing valve series D1FV with onboard electronics in size NG06 / CETOP 03 is perfectly suitable for precise pilot controls and therefore optimized process accuracy due to its excellent pressure control behaviour.

Features:

Robust, proven design that represents our long-term experience in hydraulics
Outstanding pressure behaviour - ideal for pilot controls
Low hysteresis - ensures high repeatability and thus improved process and product accuracy
Wide range of available commands - universally applicable
Short delivery time - no warehousing necessary
Manual override - allows to actuate the valve without current
Barometric feedback
Pressure stages 25 bar and 45 bar

Applications:

Suitable for general hydraulic applications

Markets:

Industrial

Products specifications

Attribute name	Attribute value
UOM	EA	Function	12 - 20 mA = P-A
Pressure Control Range	45	Seal Material	NBR
Signal Input	4 to 20 mA	Parker Division	Industrial System
Solenoid Connection	6 + PE	Parker Group	Hydraulic
Spool Position	Operated In Position A Or B
