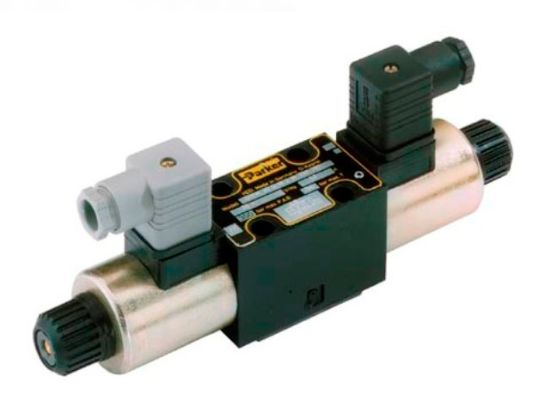

D1VW020BNYCF - D1VW Series - Single solenoid, 2 position, spring offset P > A

Name: D1VW020BNYCF - D1VW Series - Single solenoid, 2 position, spring offset P > A
SKU: D1VW020BNYCF
Price: 465.60 USD
Availability: LimitedAvailability

D1VW Series - Single solenoid, 2 position, spring offset P > A - NFPA D03 (CETOP 3, NG 6)

Availability:

1 Limited Stock

Wichita, KS

Partner Available:

39 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU D1VW020BNYCF

$465.60/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Pkg Qty	1	Seals	Buna-N (Nitrile)
Solenoid Voltage	120/60 - 110/50 VAC	Parker Spool Code	20
Parker Valve Style Code	B	Spool Type	P > A, B > T
Solenoid Connection	Conduit	Max Flow (at 3000 PSI)	12 GPM (46 LPM)
Coil Option	Low Watt	Parker Group	Hydraulic
Parker Division	Hydraulic Valve	Operator Type	Solenoid
Series	D1VW	Max Pressure	5000 PSI (345 Bar)
Seals	Buna-N (Nitrile)	Solenoid Connection	Conduit
Solenoid Voltage	120/60 - 110/50 VAC	Parker Spool Code	20
Parker Valve Style Code	B	Spool Type	P > A, B > T
Valve Style	Single solenoid, 2 position, spring offset P > A	Subplate Pattern	NFPA D03 (CETOP 3, NG 6)
Max Flow (at 3000 PSI)	12 GPM (46 LPM)	Coil Option	Low Watt

Product resources

Solenoid Valves (PDF)
