D1VW002KNKW

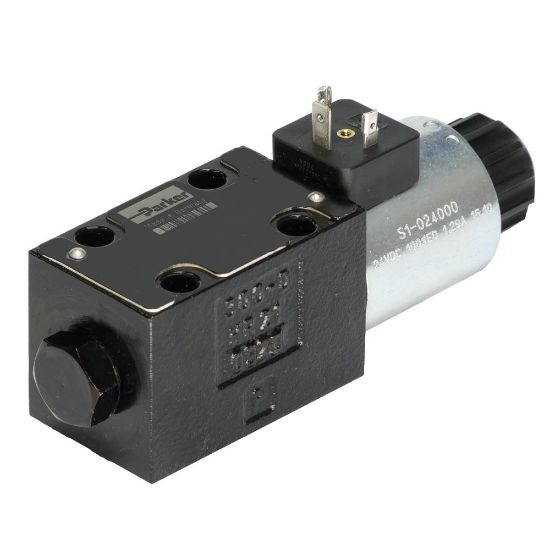

Parker D1VW002KNKW | Directional Control Valve | Material Cast Iron | Connection Type Connector As Per EN 175301-803 | For Fluid Type Water Glycol

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU D1VW002KNKW

$542.00/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	For Fluid Type	Water Glycol
Operation Type	Direct	Maximum Flow Rate	80 lpm
Port Connection	NG06 / CETOP 03	Connection Type	Connector As Per En 175301-803
Material	Cast Iron	Function	3-Way
Maximum Operating Temperature	60 °C	Spool Position	2 Positions, Spring Offset In Position 0, Operated In Position B
Spool Code	'002	Input Voltage	12 VDC
Solenoid Option	Standard	Marking	Standard
Mounting Position	Preferably Horizontal	Actuation Type	Solenoid
Product Series	Directional Control Valve	Minimum Operating Temperature	-20 °C
Mounting Option	Subplate	Seal Material	FPM, NBR
