*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

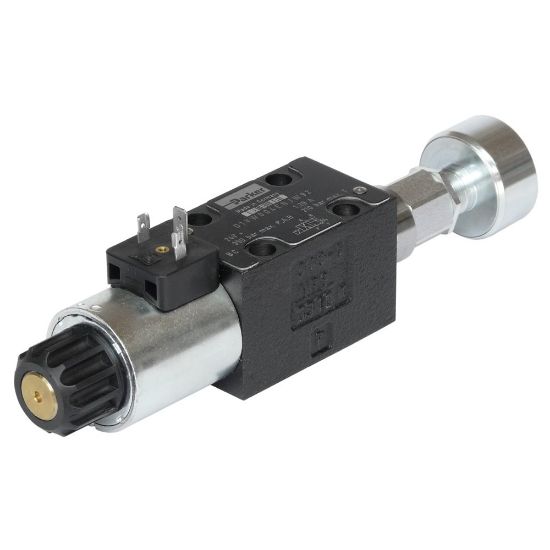

D1VW020BNUWTI5N

Name: D1VW020BNUWTI5N
SKU: D1VW020BNUWTI5N
Price: 2761.00 USD
Availability: LimitedAvailability

Manufacturer: Parker

Availability:

1 Limited Stock

Olivette, MO

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU D1VW020BNUWTI5N

$2,761.00/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	For Fluid Type	Hydraulic Oil
Port Connection	NG06 / CETOP 03	Function	2-way
Position Control Type	Start Position Monitored Side B	Material	Cast Iron
Maximum Flow Rate	70 lpm	Filter Efficiency Rating	ISO 4406; 18/16/13
Maximum Operating Temperature	60 °C	Maximum Fluid Temperature	70 °C
Maximum Ambient Temperature	60 °C	Maximum Kinematic Viscosity	400 cSt
Solenoid Option	Without Manual Override	Minimum Kinematic Viscosity	2.8 cSt
Input Voltage	98 VDC	Actuation Type	Solenoid
Minimum Fluid Temperature	-20 °C	Configuration	Directional Spool Valve
Seal Material	NBR	Mounting Option	Manifold
Spool Position	2 Positions, Spring Offset In Position B, Operated In Position A	Minimum Operating Temperature	-20 °C
Minimum Ambient Temperature	-25 °C	Spool Code	'020
