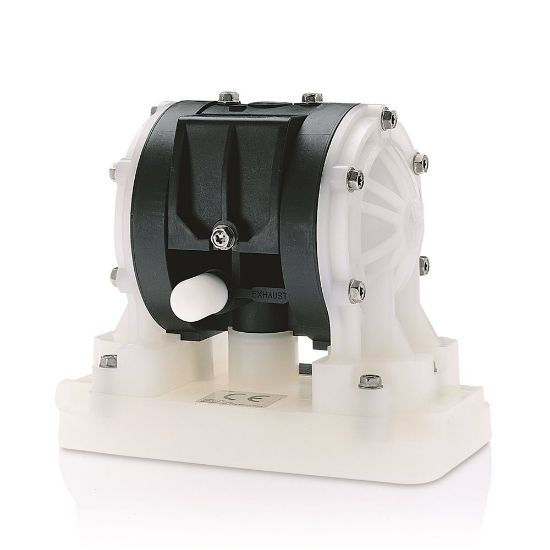

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

D22096

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D22096

Products specifications

Attribute name	Attribute value
UOM	EA	Series	205
Material	Polypropylene	Air Exhaust Port Thread Gender	Female
Connection Type	Threaded	Type	Pneumatic
Maximum Flow Rate	5 GPM	Weight	2 lb
Maximum Solid Size	0.06 Inch	Model	Husky
Maximum Air Consumption	9 SCFM	Manifold Configuration	End Port
Air Exhaust Port Size	1/4 Inch	Fluid Outlet Thread Type	NPT;BSPT
Fluid Inlet Size	1/4 Inch	Fluid Outlet Thread Gender	Female
Air Inlet Thread Type	NPT;BSP	Fluid Outlet Size	1/4 Inch
Diaphragm Material	Santoprene	Maximum Cycle Rate	320 CPM
Fluid Inlet Thread Type	NPT;BSPT	Maximum Operating Temperature	180 deg F
Diaphragm Compatible Material	Santoprene	Air Inlet Size	1/4 Inch
Air Inlet Thread Gender	Female	Air Exhaust Port Thread Type	NPT;BSP
Fluid Inlet Thread Gender	Female
