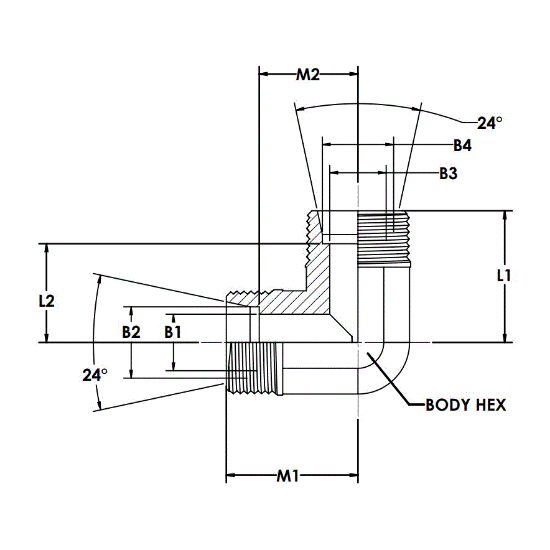

D2500-E04-E04-SS-X

Brennan D2500-E04-E04-SS-X | Elbow | Series D2500-X | Connection 1 Type Male metric 24 degree DIN Seat | Connection 2 Type Male metric 24 degree DIN Seat

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D2500-E04-E04-SS-X

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Stainless Steel
Type	Elbow	Shape	90 Degree Angle
Series	D2500-X	Cubic Inch Space	0.209
Connection 1 Specification	DIN 2353, ISO 8434-1	Connection 1 Thread Size	M08X1.0
Overall Length M1	15 MM	Connection 2 Tube Size	Extra Light 04 mm Tube OD
Centerline Length M2	11 MM	Maximum Dynamic Pressure	100 bar
Connection 2 Thread Size	M08X1.0	Connection 2 Type	Male metric 24 degree DIN Seat
Centerline Length L2	11 MM	Hex Body	9 MM
Connection 2 Specification	DIN 2353, ISO 8434-1	Connection 1 Tube Size	Extra Light 04 mm Tube OD
Connection 1 Type	Male metric 24 degree DIN Seat	Centerline Length L1	15 MM
Raw Material Type	Stainless Steel Forging
