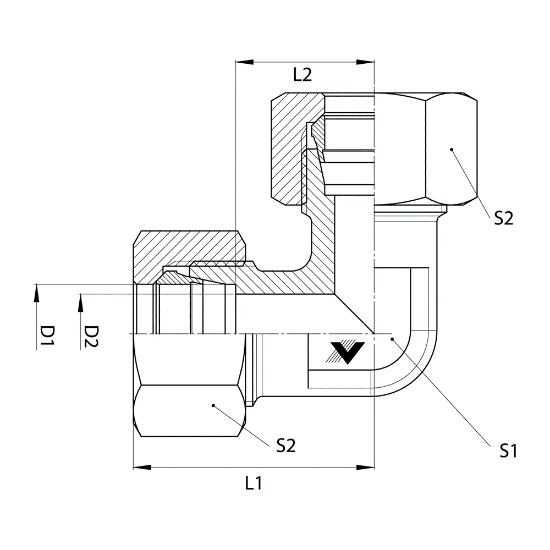

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

D2500-S14-S14

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D2500-S14-S14

Products specifications

Attribute name	Attribute value
UOM	EA	Series	D2500
Material	Steel	Cubic Inch Space	4.716
Shape	90 Degree Angle	Connection 1 Specification	DIN 2353, ISO 8434-1
Type	Elbow	Connection 2 Specification	DIN 2353, ISO 8434-1
Connection 2 Thread Size	M22X1.5	Hex C 2	27 MM
Connection 2 Type	DIN metric tube compression	Centerline Length L2	30 MM
Centerline Length M2	30 MM	Hex Body	19 MM
Overall Length M1	40 MM	Centerline Length L1	40 MM
Connection 1 Thread Size	M22X1.5	Hex C 1	27 MM
Connection 1 Tube Size	Heavy 14 mm Tube OD	Connection 1 Type	DIN metric tube compression
Raw Material Type	Steel Forging	Maximum Dynamic Pressure	630 bar
Plating	Zinc Nickel	Connection 2 Tube Size	Heavy 14 mm Tube OD
