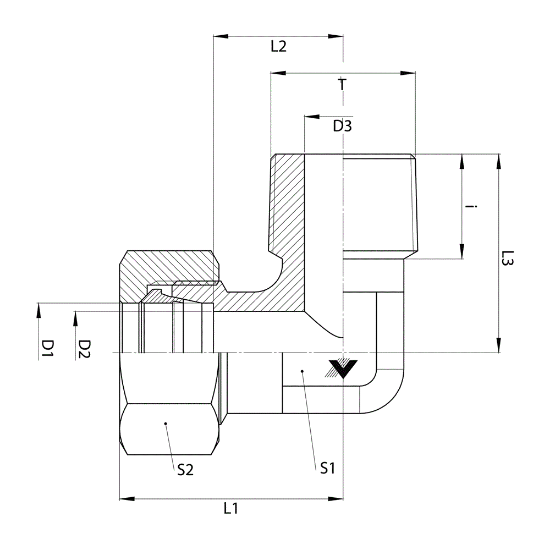

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

D2501-E06-02

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D2501-E06-02

Products specifications

Attribute name	Attribute value
UOM	EA	Series	D2501
Material	Steel	Cubic Inch Space	0.431
Connection 1 Specification	DIN 2353, ISO 8434-1	Shape	90 Degree Angle
Type	Elbow	Hex Body	9 MM
Overall Length M1	21 MM	Centerline Length L2	10 MM
Hex C 1	12 MM	Centerline Length M2	15 MM
Centerline Length L1	17.1 MM	Connection 2 Type	Male NPT
Connection 1 Tube Size	Extra Light 06 mm Tube OD	Connection 2 Specification	ANSI B1.20.1
Centerline Lenght M3	9.5 MM	Connection 1 Thread Size	M10X1.0
Connection 2 Thread Size	1/8-27	Raw Material Type	Steel Forging
Connection 1 Type	DIN metric tube compression	Plating	Zinc Nickel
Maximum Dynamic Pressure	100 bar
