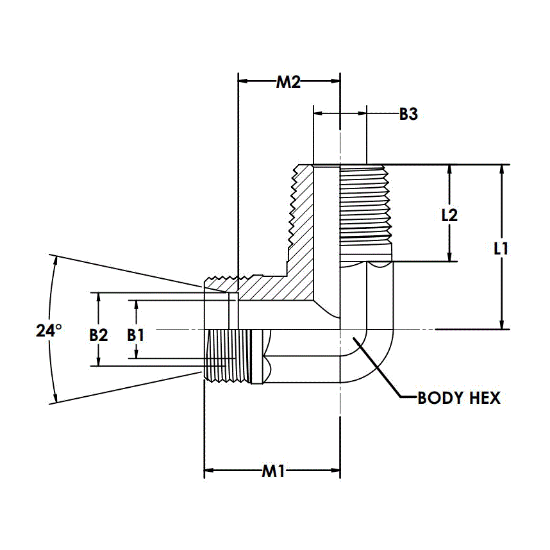

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

D2501-L18-08-X

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D2501-L18-08-X

Products specifications

Attribute name	Attribute value
UOM	EA	Cubic Inch Space	3.023
Series	D2501-X	Material	Steel
Type	Elbow	Shape	90 Degree Angle
Connection 1 Specification	DIN 2353, ISO 8434-1	Connection 1 Type	Male metric 24 degree DIN Seat
Centerline Length M2	23.5 MM	Connection 1 Tube Size	Light 18 mm Tube OD
Connection 2 Specification	ANSI B1.20.1	Centerline Length L2	20 MM
Connection 2 Type	Male NPT	Connection 1 Thread Size	M26X1.5
Hex Body	24 MM	Maximum Dynamic Pressure	315 bar
Centerline Length L1	36 MM	Raw Material Type	Steel Forging
Connection 2 Thread Size	1/2-14	Plating	Zinc Nickel
Overall Length M1	31 MM
