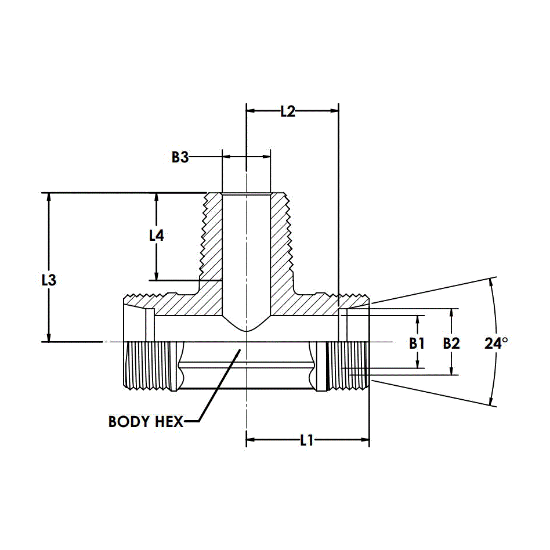

D2601-L18-L18-08-SS-X

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D2601-L18-L18-08-SS-X

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Stainless Steel
Type	Tee	Connection Type	MBT-MBT-MP (Body Only)
Weight	0.374 LB	Series	D2601-X
Style	DIN Fitting	Thread Size 2	M26 x 1.5
Standard	Prop-65 Warning	Max. Dynamic Pressure	315 Bar
Connection Specification 1	DIN 2353, ISO 8434-1	Connection Specification 3	ANSI B1.20.1
Thread Size 1	M26 x 1.5	End Type 2	Male Metric 24 Degree DIN Seat
Raw Material Type	Stainless Steel Forging	Thread Size 3	1/2-14
Thread ID	14 MM	Tube Size 2	18 MM
Tube Size 1	18 MM	Body Hex	24 MM
End Type 3	Male NPT	Connection Specification 2	DIN 2353, ISO 8434-1
End Type 1	Male Metric 24 Degree DIN Seat
