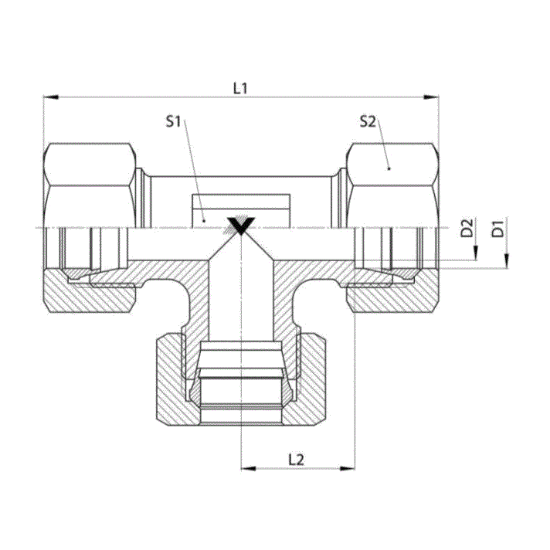

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

D2603-S38-S38-S38

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D2603-S38-S38-S38

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Type	Tee	Connection Type	MBT-MBT-MBT EQUAL
Weight	4.99 LB	Series	D2603-EQUAL
Style	DIN Fitting	Hex Size 1	60 MM
Thread Size 2	M52 x 2.0	Standard	Prop-65 Warning
Max. Dynamic Pressure	420 Bar	Connection Specification 1	DIN 2353, ISO 8434-1
Sleeves	Yes	Tube Nuts	Yes
Thread Size 3	M52 x 2.0	Raw Material Type	Steel Forging
Tube Size 1	38 MM	Plating	Zinc Nickel
End Type 3	DIN Metric Tube Compression	Connection Specification 3	DIN 2353, ISO 8434-1
Hex Size 2	60 MM	Tube Size 3	38 MM
Connection Specification 2	DIN 2353, ISO 8434-1	Hex Size 3	60 MM
Thread Size 1	M52 x 2.0	End Type 2	DIN Metric Tube Compression
End Type 1	DIN Metric Tube Compression	Body Hex	50 MM
Tube Size 2	38 MM
