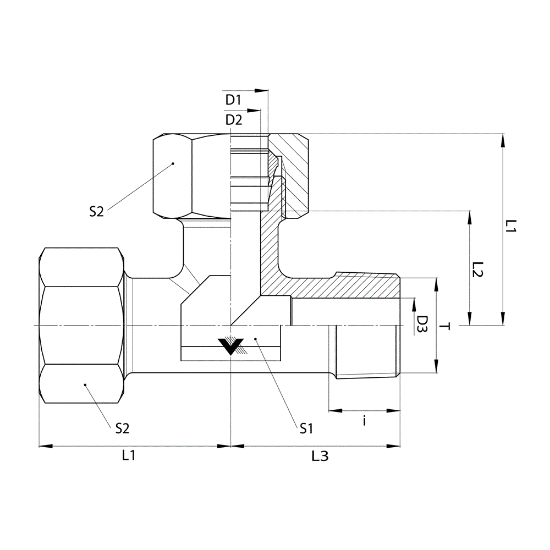

D2605-E06-02-E06-SS

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D2605-E06-02-E06-SS

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Stainless Steel
Type	Tee	Connection Type	MBT-MP-MBT
Weight	0.064 LB	Series	D2605
Style	DIN Fitting	Hex Size 1	12 MM
Thread Size 2	1/8-27	Standard	Prop-65 Warning
Max. Dynamic Pressure	100 Bar	Connection Specification 1	DIN 2353, ISO 8434-1
Tube Size 3	6 MM	End Type 1	DIN Metric Tube Compression
Raw Material Type	Stainless Steel Forging	Thread Size 3	M10 x 1.0
Thread ID	4.5 MM	End Type 2	Male NPT
End Type 3	DIN Metric Tube Compression	Tube Size 1	6 MM
Body Hex	9 MM	Connection Specification 2	ANSI B1.20.1
Connection Specification 3	DIN 2353, ISO 8434-1	Hex Size 2	12 MM
Thread Size 1	M10 x 1.0
