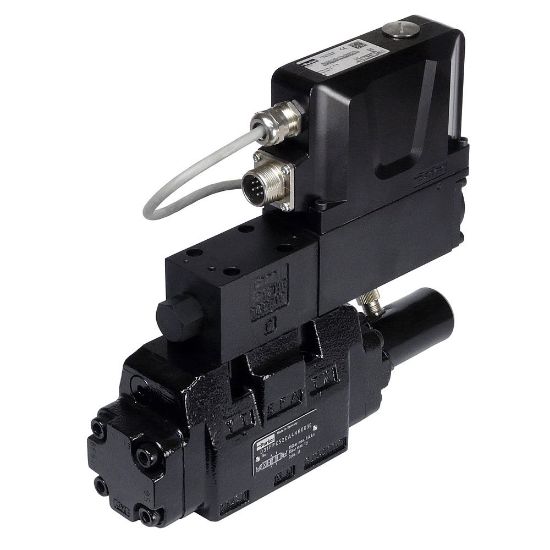

D31FPE52EA2VK00

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 98 days
Partner Available:	Backordered

SKU D31FPE52EA2VK00

$17,867.00/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Filter Efficiency Rating	ISO 4406 18/16/13
Application	Industrial Hydraulic	Variation of Opening Point	set to 10 % Command Signal
Port Connection	NG32 / CETOP 10, NG10 / CETOP 05	Operation Type	Pilot
Maximum Flow Rate	250 lpm	Hysteresis	< 0.1 %
Maximum Pilot Pressure	350 bar	Minimum Pilot Pressure	20 bar
Material	Cast Iron	For Fluid Type	Others
Flow Rate	120 lpm, 120 lpm	Pilot Inlet / Drain Locations	External/external
Media	Hydraulic Oil	Leak Rate	Depending on Spool
Pilot Inlet	External	Technology	Hydraulics
Function	Proportional	Connection Type	6+pe
Actuation Type	VCD-Actuator	Spool Type	Zerolap
Minimum Ambient Temperature	-20 °C	Mounting Option	NFPA
Defined Spool Position At Power Down	P-A/B-T	Maximum Ambient Temperature	60 °C
Seal Material	FPM	Minimum Kinematic Viscosity	20 cSt
Valve Type	Proportional DC Valve	Valve Option	Standard And Regenerative Valve Function
Response Time	10 ms	Maximum Fluid Temperature	60 °C
Pressure Differential	5 Bar	Maximum Kinematic Viscosity	400 cSt
IP Rating	IP65	Electronics Type	Onboard
Product Series	Proportional DC Valve	Mounting Position	Preferably Horizontal
Minimum Fluid Temperature	-20 °C	Signal Input	0 to ±10 V
Power Supply Voltage	Surge Free V % Eff.	Spool Code	E52
