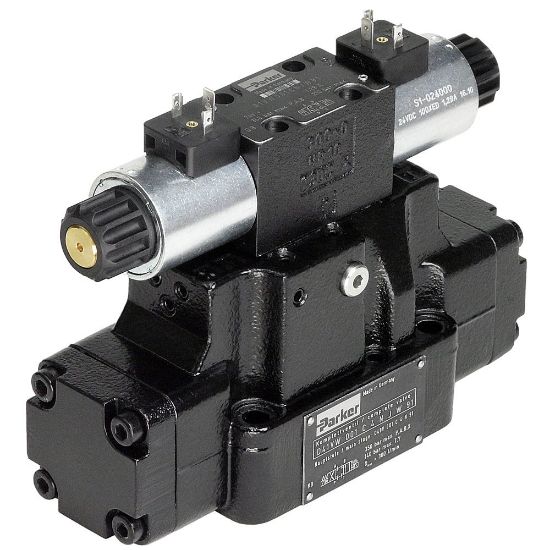

Parker D41VW020B4NJWI5N | Directional Control Valve | Material Cast Iron | Connection Type Connector As Per EN 175301-803 | For Fluid Type Hydraulic Oil

Manufacturer: Parker

Availability:	Backordered
Partner Available:	Backordered

SKU D41VW020B4NJWI5N

$3,838.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Cast Iron
For Fluid Type	Hydraulic Oil	Pilot Inlet / Drain Locations	Internal
Operation Type	Pilot	Function	3-Way
Connection Type	Connector As Per En 175301-803	Additional Options	Position Control, Start Position Monitored, Side B
Maximum Flow Rate	300 lpm	Port Connection	NG16 / CETOP 07
Maximum Operating Temperature	60 °C	Solenoid Option	Standard Solenoid Without Options
Marking	Standard	Actuation Type	Solenoid
Bore Size	20 mm	Seal Material	NBR
Input Voltage	24 VDC	Minimum Operating Temperature	-20 °C
Spool Code	'020	Spool Position	2 Positions, Spring Offset In Position B, Operated In Position A
Product Series	Directional Control Valve	Mounting Option	Subplate
