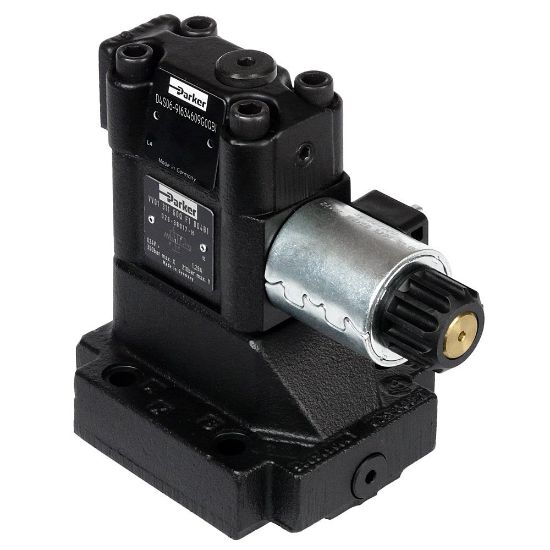

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

D4S1092234411W30B1

Availability:	Backordered Estimated Lead Time: 80 days
Partner Available:	Backordered

SKU D4S1092234411W30B1

$5,824.56/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	For Fluid Type	Hydraulic Oil
Pilot Inlet	Pilot Line Body: External from X (A-X closed / B-Y open)	Minimum Opening Pressure	A-B 3.5 bar, B-A 6.0 bar
Pilot Inlet / Drain Locations	Pilot line body: External from X (A-X closed / B-Y open)	Function	Vent Function Solenoid Activated, Unpressurized Circulation, with Manual Override.
Port Connection	NG32 / ISO 6264	Maximum Flow Rate	600 lpm
Seal Material	NBR	Mounting Option	Subplate
Sleeve Type	AA=0.60 AC, AB=0.40 AC	Minimum Operating Temperature	-20 °C
Input Voltage	110/120 VAC, 50/60 Hz	Cover	Pilot line Cap: With Vent Function, External Pilot Drain From Cap, X Open, Y Open, Z Orifice 1.2, X-Y Closed, Y1 Open, VV01 Closed
Spool Type	Poppet with Closed Bottom, 45° Chamfer	Switching Option	Vent Function: Solenoid Activated, Unpressurized Circulation, with Manual Override
Maximum Operating Temperature	60 °C	Mounting Position	Unrestricted
Actuation Type	Pilot	Product Series	Check Valve
